Cell Phone RF Waterproof Outdoor Signal Jammer AC Adapter For GSM/CDMA/UMTS 3G

Product Description:

This device can affect five different frequency ranges at the same time, they are CDMA 800(850 to 894MHz), GSM 900(925 to 960MHz), GSM 1800(1805 to 1880MHz), GSM 1900(1920 to 1990MHz) and 3G(2110 to 2170MHz). However if your do not want to shield all the bands, you can choose which band to use according to your requirements and necessary. The total output power of this device is 240V, and power supply is 50 to 60Hz, 100 to 240V AC. There would be AC adapter (AC100-240V-DC27V) to match this 60kg weight jamming device.

Each band can adjust RF power output level or turn off without influencing the other bands’ operation. The original antenna is external double channel directional panel antennas and you can select antennas to provide more flexibility regarding jamming coverage. The jamming coverage of this jammer is so strong that the jamming range could reach 500m

Each RF module owns independent design, and it is designed with the aiming of cut off wave only in the down-link band width. And it also owns RF output indicating of LED display, VSWR sensor protection for each modular. Another characteristic that can attract you is that for each band the Hi/Low RF power can be adjusted

Specifications

Affected Frequency Ranges:

Output Interface	Output Frequency
CH1	CDMA850:850-894MHz
CH2	GSM900:925-960Mhz
CH3	-DCS 1805-1880MHz
CH4	-PCS 1920-1990MHz
CH5	-3G 2110-2170MH
Power supply:	AC adapter(AC110V-240V)
Available system	world wide cell phone network
Operate time	24 hours continuous
Jammer Module Number	5
Shielding Radius	Up to 500 meter(-75dBm still depends on the signal strength in given area.)

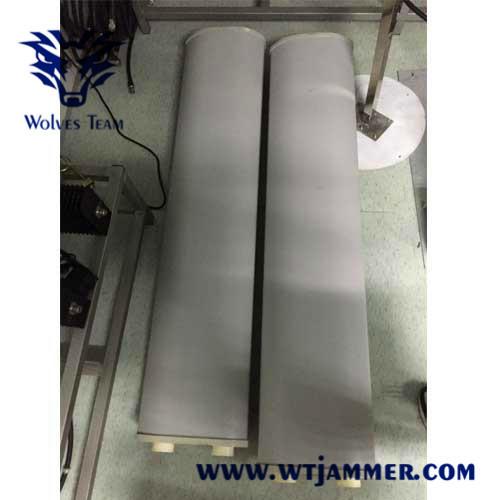

Directional Antenna	2pcs antennas ( Please fix the antenna follow the mark in the unit)
Total output power	500W
Temperature	-40 to +55°C
Relative humility	≤90%(RH)
Air pressure	86~106kPa
Weight	60kg
Dimension	720(L)×500(W)×330H)mm (Not included Antenna)

Accessories

Mobile Phone Jammer
Power Cable
Coaxial Cable
Directional Antennas

Terms and conditions:

Delivery Time Schedule	Delivery time is 1 or 2 months, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms	40% advance, 40% after one month,20% before shipping.
Terms of Delivery	FOB HONGKONG/ USA.
Warranty	36 months.
Software Updates	Free software updates will be provided for a period of 36 months.
Extended Warranty	After 4th Year : 5% of total for each years.
